Product Overview

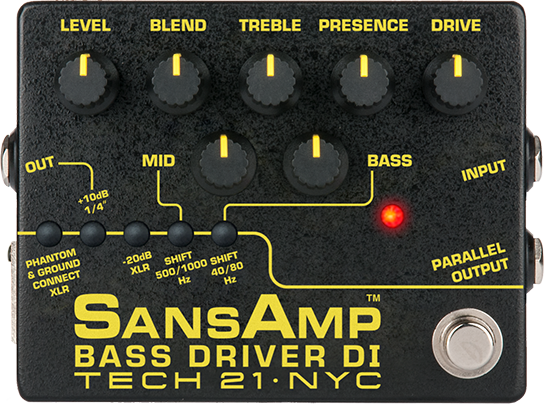

Much more than just a direct box, the SansAmp Bass Driver DI is capable of dialing up big vintage tube tones, bright modern slap sounds, gnarly distortions, and all in between. Three different outputs to drive power amps, recording desks, PA mixers, or simply enhance your current rig. Controls include Presence for definition and upper harmonic content; Blend to combine the proportion of direct signal and SansAmp circuitry; and active EQ specifically tuned for bass with 12dB of cut or boost.
VERSION 2
With the popularity of 5- and 6-string basses going beyond fad status and becoming mainstream, we added a switch to adjust the bass frequency to extend into those lower registers. We also added a mid-range control and a switch to adjust its frequency. The core of the SansAmp Bass Driver and all of its tones remain true to its original design.
The controls offer a broad range of traditional bass amp sounds, including such meaty styles as Bassman® and SVT®, as well as raunchy, crunchy overdriven sounds that would typically require a multitude of effects units.
PRESENCE
Controls the amount of definition and upper harmonic content.
DRIVE
Adjusts the overall gain structure and overdrive.
LEVEL
Regulates the XLR and effected 1/4″ output levels.
BLEND
Allows you to mix the direct bass signal with SansAmp Tube Amplifier Emulation circuitry (which is particularly useful for basses equipped with piezo pickups).
MID, BASS & TREBLE
Are active EQ controls, specifically tuned for bass guitar, that cut or boost +/- 12dB.
MID SHIFT switch changes the frequency from
500 Hz to 1000 HZ.
BASS SHIFT switch changes the frequency from
40 Hz to 80 Hz.
BUILT-IN SPEAKER/CAB SIM: The 100% analog SansAmp Tube Amplifier Emulation technology encompasses the entire signal chain, from pre-amp to power amp to speaker simulation. An integral part of the circuitry, the SansAmp speaker simulation will complement any type of guitar or bass speaker cabinet system. You can also place an external IR after a SansAmp to give additional flavor if you so desire. The SansAmp speaker sim is designed and individually tailored for a smooth, even response as would be achieved by a multiply-miked cabinet –without peaks, valleys, and notches associated with single miking and many IRs.
For studio and live applications, SansAmp Bass Driver DI is engineered with three outputs:
• effected XLR
• effected 1/4″
• parallel, uneffected 1/4″
The footswitch activates the Tube Amplifier Emulation circuitry. Disengaging the circuitry enables you to use SansAmp Bass Driver DI as a standard active transparent direct box.
Sample style settings in the owner’s manual include:
Bassman®
SVT®
King’s X
Slap
Reggae
Crimson
