Product Overview
Features

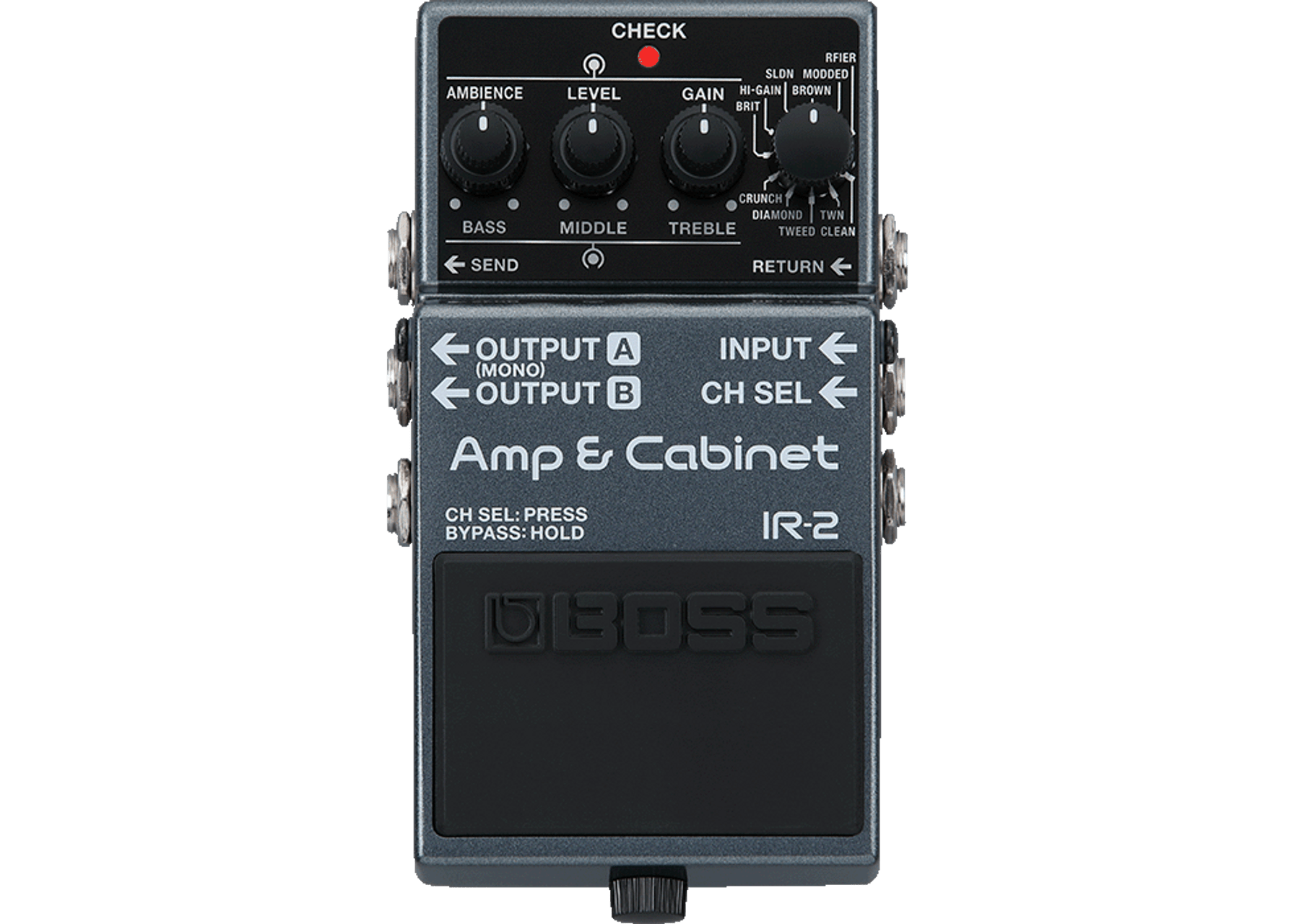

- Premium amp emulator and cabinet IR loader in a BOSS compact pedal
- Exceptional audio quality with 32-bit floating-point processing and 96 kHz sampling rate
- Eleven different amp types and high-quality cab IRs from Celestion Digital
- Simple user interface with Level, Gain, Bass, Middle, and Treble controls
- Ambience effect with dedicated control
- Mono input and stereo outputs
- Mono/stereo loop for patching in mod, delay, and reverb effects after the amp emulation
- Headphones jack for practice
- USB-C for recording and audio playback via a computer or mobile device*
- Switch between two amp/cab tones with the pedal switch or an external footswitch
- Dedicated IR-2 IR Loader app (macOS/Windows) for loading your own cabinet IRs
- Amp and cabinet sections can be turned on/off independently for isolated use
- BOSS five-year warranty
SPECIFICATIONSSampling Frequency96 kHzAD Conversion24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointIR cabinet data formatMono, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating pointPreset IR cabinet11User IR cabinet slot11
* These are the same slots as the preset IR cabinet.Nominal Input LevelINPUT, RETURN: -20 dBuMaximum Input LevelINPUT, RETURN: +7 dBuInput ImpedanceINPUT, RETURN: 1 MΩNominal Output LevelOUTPUT A (MONO), OUTPUT B, SEND, PHONES: -20 dBuMaximum Output LevelOUTPUT A (MONO), OUTPUT B, SEND, PHONES: +7 dBuOutput ImpedanceOUTPUT A (MONO), OUTPUT B, SEND: 1 kΩ
PHONES: 44 ΩRecommended Load ImpedanceOUTPUT A (MONO), OUTPUT B, SEND: 10 kΩ or greater
PHONES: 44 Ω or greaterBypassBuffered bypassControlsType knob
GAIN knob
TREBLE knob
LEVEL knob
MIDDLE knob
AMBIENCE knob
BASS knob
Pedal switchIndicatorCHECK indicator (Used for indication of Channel and check battery)ConnectorsINPUT jack, OUTPUT A (MONO) jack, OUTPUT B jack, SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch TRS phone type
CH SEL jack: 1/4-inch phone type
DC IN jack
PHONES jack: Stereo miniature phone type
USB port: USB Type-C(R)Power SupplyAlkaline battery (9 V, 6LR61 or 6LF22, commercially available)
AC adaptor (PSA series: sold separately)Current Draw160 mAExpected battery life under continuous useAlkaline: Approx. 3.5 hours (6LR61)
* These figures will vary depending on the actual conditions of use.
